Gate Logic

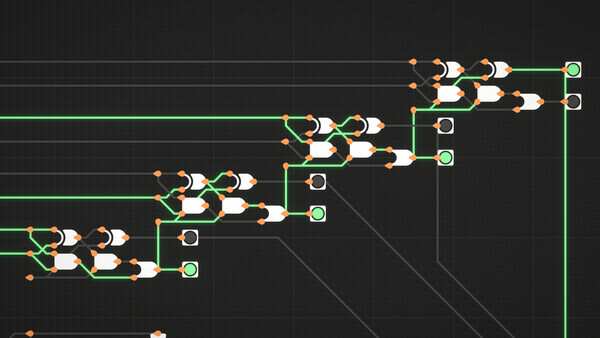

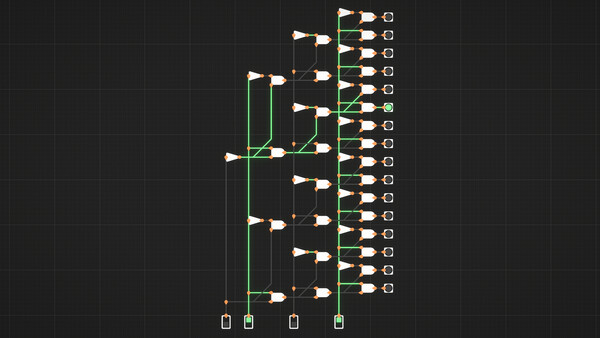

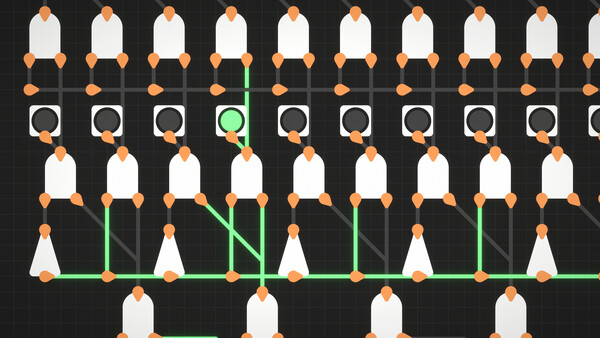

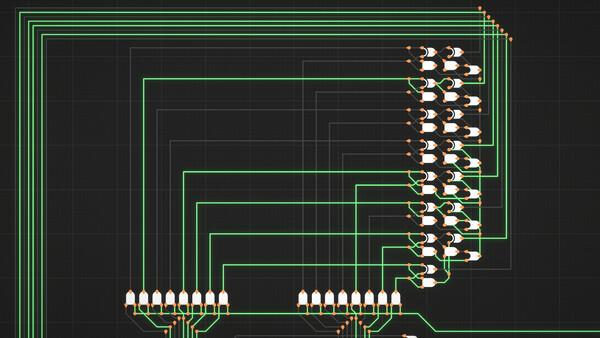

Gate Logic lets you build any logic circuit made up from the Boolean logic gates NOT, AND, OR, NOR, XOR and XNOR on an infinite, grid based canvas.
N/A
VGDB Score
Be the first to review
Overview
Summary
Gate Logic lets you build any logic circuit made up from the Boolean logic gates NOT, AND, OR, NOR, XOR and XNOR on an infinite, grid based canvas.
Description
About This Game
Gate Logic lets you build any logic circuit made up from the Boolean logic gates NOT, AND, OR, NOR, XOR and XNOR on an infinite, grid based canvas.

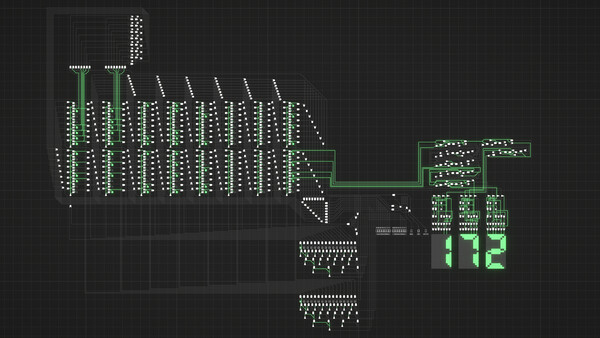

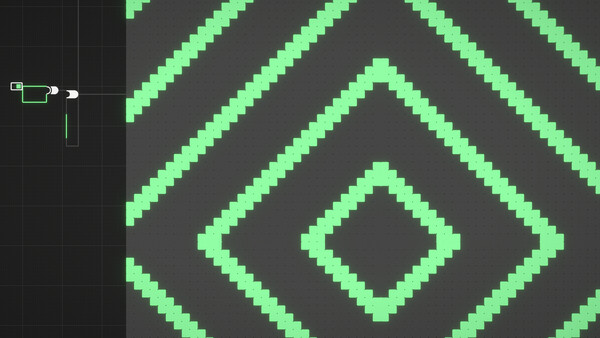

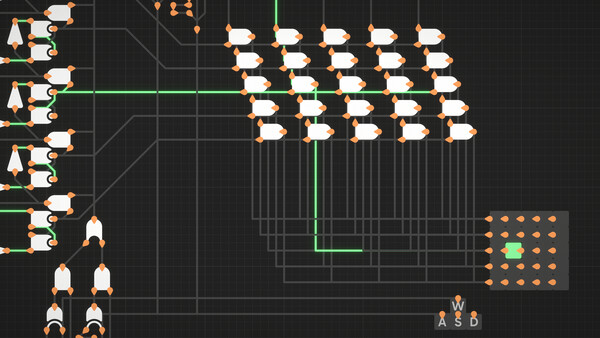

You can also add input toggles which can be bound to keyboard buttons and output LED's which can be switched to pixel mode for making displays.
The simulation can be stopped and stepped forward manually as well as backwards for easy debugging. When unpaused, the simulation will run at the set frequency. You can use the frequency slider to change this value at any time.
Importing other save files into the current circuit allows you to build circuits using reusable, modular components.
Check out the workshop to download and see what others have built and share your own creations.
